pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food

제품 상세 정보:

원래 장소: 중국
브랜드 이름: MIKIM
인증: CE
모델 번호: DGP-40, DGP-60, DGP-70, DGP-85, DGP-90

결제 및 배송 조건:

최소 주문 수량: 1 세트
가격: $1500.00 - 35000.00/ Set
포장 세부 사항: 목재 수출 패키지로 포장하거나 컨테이너로 적재
배달 시간: 7-10 근무일
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram
공급 능력: 달 당 300 세트
최고의 가격 접촉

상세 정보
곰팡이: 다양한 모양을 선택할 수 있습니다 식재료: 고기, 콩, 야채 등
예비 부품: 1 세트 작업: 간단한 자동운전
모터: 중국 브랜드, Siemens, Abb 처리 유형: 압출
인테르: 씨줄
강조하다:

floating fish feed pellet mill

,

single screw extruder for fish food

,

pet food pellet production line

제품 설명

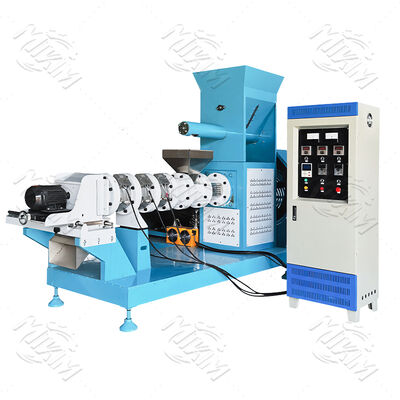

Floating Fish Feed Pellet Mill Single Screw Extruder for Fish Food
Complete production line flow: Grinding → Mixing → Extruding → Drying → Flavoring → Cooling → Packaging
Custom layout designs available according to your factory dimensions for pet food and fish feed production.
pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 0
Main Equipment and Specifications
Hammer Mill
  • Applicable for crushing raw materials in pet feed, aquatic feed, and food industry processing
  • Adjustable hammer blade and screen mesh gap for coarse and fine grinding
  • Unique hammer blade installation with high-precision dynamic balance for stable operation and low noise
  • Axial air inlet system and water drop-shaped grinding chamber increase efficiency by over 30%
  • Cemented carbide technology extends hammer blade service life
  • Magnetic separation feeder with adjustable speed for feeding, air supplement, and iron removal
pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 1
Mixer
  • Thoroughly mixes different powdered raw materials with short discharge time and no residue
  • Large bottom door design for easy maintenance and replacement
  • Rubber sealing ring prevents leakage
  • Top spray system for easy liquid addition
  • High mixing uniformity (CV ≤ 5%) with mixing time of 30-120 seconds per batch
  • Material: Carbon steel with Siemens/WEG motor and SKF bearings
pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 2

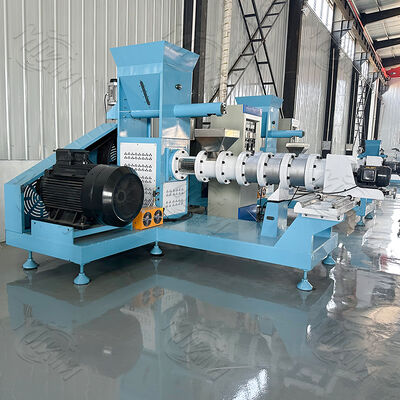

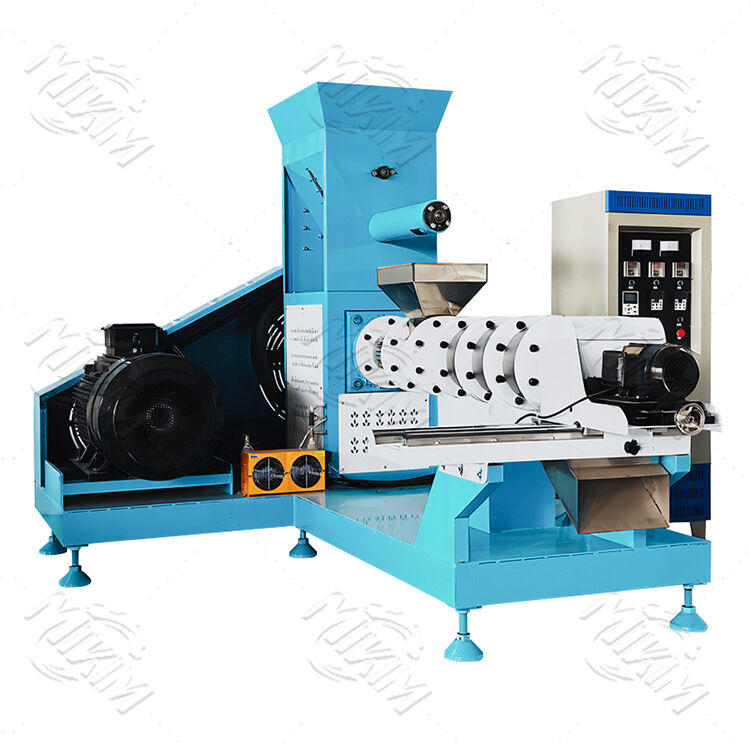

Fish Feed Pellet Extruder
  • Screw material: Special wear-resistant alloy; Barrel material: 45# steel
  • Dual-shaft differential speed conditioner ensures thorough, uniform conditioning
  • Stainless steel conditioner construction for extended service life
  • Forced lubrication system protects bearings and transmission components
  • Barrel temperature display for easy adjustment
  • Energy-efficient design reduces consumption and production costs
pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 3
Automatic Drying Box
  • Four-layer mesh belt design minimizes material damage
  • Multi-layer hot air flow structure for enhanced drying performance
  • Insulated chamber with 95% hot air circulation efficiency
  • Adjustable drying temperature and material residence time
  • Material contact parts: Stainless steel; Outer chamber: Insulating material
pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 4
Double Drum Seasoning Machine
  • Optimized double helix rotor design for uniform material distribution
  • No material retention, breakage, or dead zones during mixing
  • Fat and oil addition capability improves extruder performance
  • Enhanced feed absorption and reduced water pollution
  • Material: Stainless steel cylinder with carbon steel frame
pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 5
Final Pellet Specifications
Produces round and various other shapes with diameters ranging from 0.9-15mm (achieved by replacing molds)
pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 6
Technical Parameters
Parameter DGP-100 DGP-120 DGP-135 DGP-160 DGP-200
Capacity (kg/h) 500 600-700 800-900 1000-1200 1800-2000
Main Motor (kw) 37 55 75 90 132
Feeder Motor (kw) 1.5 1.5 1.5 2.2 3
Cutter Motor (kw) 1.5 1.5 2.2 2.2 3
Screw Diameter (mm) φ100 φ120 φ135 φ160 φ200
Machine Size (m) 2×2.8×1.2 2.2×2.9×1.2 2.2×3.1×1.37 2.3×3.15×1.38 2.35×3.45×1.65
Weight (kg) 1500 1800 2000 2500 3200
Packaging and Shipping
MIKIM ensures machine safety during transportation with plastic film wrapping to prevent moisture and rust, metal frame fixation, and container reinforcement. Comprehensive support throughout the shipping process.
Our Services
  • Detailed introduction of wet-type advanced design fish food extruder based on client capacity requirements
  • Comprehensive information sharing including detailed pictures, videos, and technical data
  • Custom design of floating fish food extruding lines
  • Assistance with suitable floating fish feed formulations
  • Comprehensive instruction manuals and operational videos
Customer Visits
pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 7 pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 8
Qualifications and Awards
pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food 9
