Animal Pet Feed Maker Press Mill Floating Catfish Fish Feed Making Production Processing Extruder Pellet Machine
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | MIKIM |
| 인증: | CE |
| 모델 번호: | MK-100 / MK-300 |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | US$1,590.00 - 2,490.00 |
| 포장 세부 사항: | 140.00cm * 110.00cm * 90.00cm |
| 지불 조건: | l/c, d/a, d/p, t/t |
| 공급 능력: | 30 |
|
상세 정보 |
|||
| 힘: | 5.5kW | 유형: | 압출기 |
|---|---|---|---|
| 어플리케이션: | 애완동물 사료 생산 | 식재료: | 고기, 콩, 야채 등 |
| 노동자가 필요했습니다: | 1 ~ 2 노동자 | 특징: | 연속 및 자동 |
| 전압: | 380V | 이점: | 포장 기계와 쉽게 연결합니다 |
| 기계 이름: | 드라이 도그 푸드 제작 기계 | 공식: | 무료로 방식을 제공하세요 |
| 모터: | 중국 브랜드, Siemens, Abb | ||
| 강조하다: | floating catfish feed extruder machine,pet feed pellet making machine,fish feed production processing extruder |
||
제품 설명
Animal Pet Feed Maker Press Mill Floating Catfish Fish Feed Making Production Processing Extruder Pellet Machine
Product Description
Introduction about the floating fish feed pellet machine:
The raw materials can be wheat, soybean, cake and other leftovers etc.
The final products floating pellets are widely used in frogs, aquatic, ornamental fish, pet feed, fish farmers, small feed mill.
Key Features
- The cutting structure is very advanced with cutter shaft fixed spring to cut to realize. Infinitely speed change; the final output product can be cut freely in different length according to requirement.
- The Screw is made of special wear-resisting No38 chromium aluminum molybdenum after tempering, heating and formed; it's with wear-resisting and long life.
- In order to ensure quality and capacity, there is special pressurization die device and the electric heating devices improve the feed expansion rate.
- The main bearing is from Japanese and Sweden bearing to ensure its safety. The main motor is Y-Series three phrase industrial pure copper motor.
- The floating pellets will float on the water for about 12 hours without spreading. The pellets are no pollution and easy for working members to observe. The materials is health and easy for fish and poultry to absorb. Usually if use floating pellet feed can save 8-15% feed than to use powder feed.

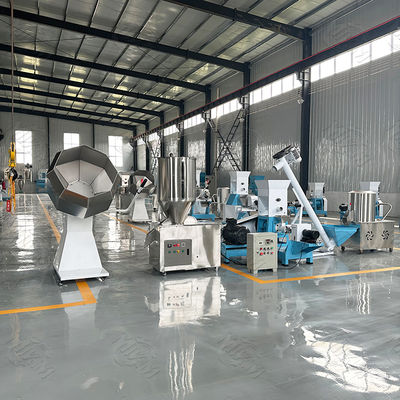

Product Images
Technical Specifications
| Model | DGP40-C | DGP50-C | DGP60-C |
|---|---|---|---|
| Power (KW) | 5.5kw | 7.5+0.4kw | 15+0.4 |
| Capacity (kg/h) | 30-40 | 60-80 | 120-150 |
| Weight(kg) | 350 | 400 | 450 |
| Machine size (mm) | 1350*1030*840 | 1470*1110*850 | 1470*1140*840 |
| Model | Capacity/t/h | Power/kw | Feed power/kw | Diameter/mm | Cutting power/kw | Size(mm) |
|---|---|---|---|---|---|---|
| DGP40-C | 0.03-0.04 | 5.5 | 0.4 | Φ40 | 0.4 | 1350*1030*840 |
| DGP50-C | 0.06-0.08 | 7.5-11 | 0.4 | Φ50 | 0.4 | 1470*1110*850 |
| DGP60-C | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 | 1470*1140*840 |
| DGP70-B | 0.18-0.2 | 18.5 | 0.4 | φ70 | 0.4 | 1790*1470*940 |
| DGP80-B | 0.2-0.25 | 22 | 0.4 | φ80 | 0.6 | 1850*1470*950 |
| DGP90-B | 0.32-0.35 | 37 | 0.6 | φ90 | 0.8 | 2300*1640*1000 |
| DGP120-B | 0.5-0.6 | 55 | 1.1 | φ120 | 2.2 | 2350*2010*1110 |
| DGP135-B | 0.7-0.8 | 75 | 1.1 | φ133 | 2.2 | 2450*2040*1200 |
| DGP160-B | 1-1.2 | 90 | 1.5 | φ155 | 2.2 | 2550*2100*1300 |
| DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0 | 2650*2240*1400 |
